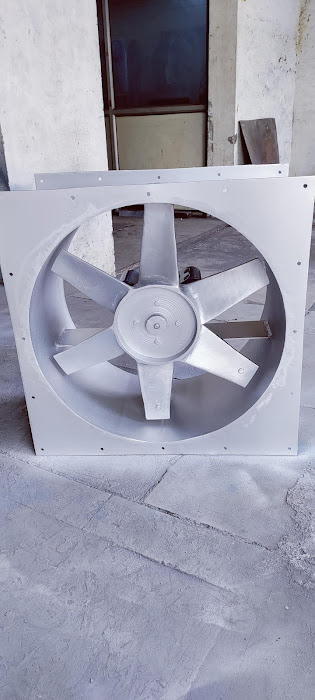

Axial Flow Fans are Designed to Meet Large Quantities at Compartively Low Pressures, and are Ideal for Ventilation and Air Conditioning Requirements Where Many Air Volume & Pressure Combinations are Required.

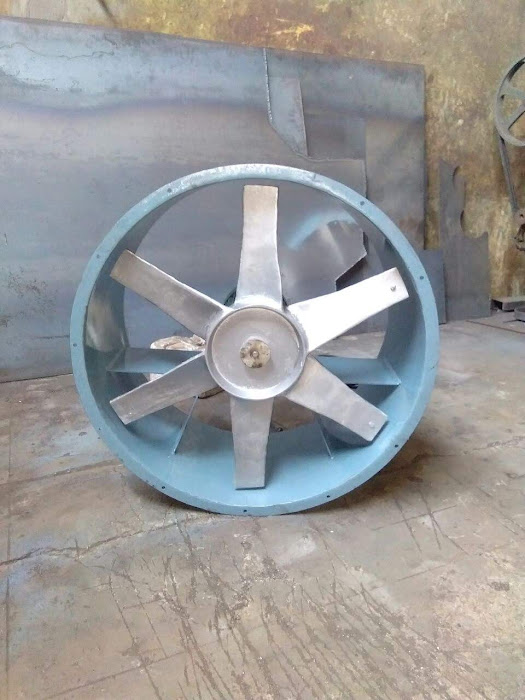

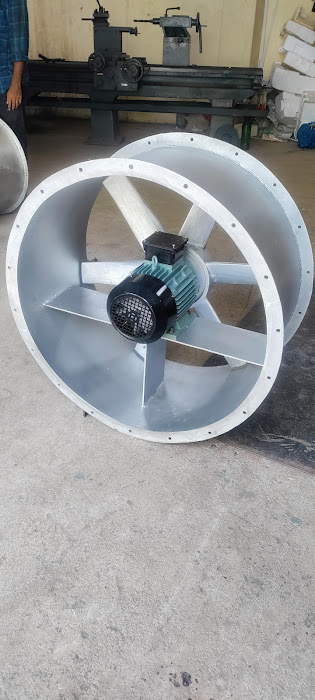

Tube Axial Fans are Particularly Useful for Handling Hot, Moist Air or GAs and Fumes and Providing Fresh Air. They are Used in Cement, Chemical, Petrochemical, Paper, Plastic, pharmaceuticals, Steel, Textile, Food Processing and Thier Industries
| Impeller Size | Speed | Motor | Free Air | CMH at Different Static Pressures in Standard Water Gauge | inch | mm | RPM | HP | CMH | 5 mm | 10 mm | 15 mm | 20 mm | 25 mm | 30 mm | 40 mm | 50 mm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 12 | 305 | 1425 2850 |
0.25 0.75 |
1700 3900 |
1550 3750 |
1350 3500 |
500 3350 |
- 2500 |
- - |
- - |
- - |
- - |
| 15 | 380 | 1425 2850 |
0.25 0.50 |
3500 5500 |
3350 5350 |
2750 5250 |
2480 4900 |
1600 4600 |
- 4250 |
- 3750 |
- - |
- - |
| 18 | 455 | 1425 2850 |
0.25 3.00 |
5250 10500 |
4850 10300 |
4450 10200 |
3850 10000 |
3350 9800 |
- 9600 |
- 8700 |
- 7700 |
- 6500 |
| 24 | 610 | 1425 | 1.00 | 10200 | 9700 | 8900 | 7900 | 6600 | - | - | - | - |
| 27.5 | 700 | 1425 | 3.00 | 18250 | 17000 | 15200 | 13800 | 12500 | - | - | - | - |
| 31.5 | 800 | 1425 960 |
5.00 3.00 |
26000 17900 |
25000 16000 |
23000 13000 |
21000 10000 |
19500 - |
15000 - |
- - |
- - |
- - |
| 36.0 | 915 | 960 1440 |
5.00 10.00 |
33000 44000 |
29900 41000 |
26400 39000 |
20500 36000 |
17000 34000 |
- 32000 |
- 29000 |
- - |
- - |
| 39.5 | 1000 | 960 | 7.5 | 36000 | 33000 | 31000 | 27000 | 23000 | - | - | - | - |
| 47.5 | 1200 | 720 960 |
7.5 10 |
45000 61000 |
43000 58000 |
39000 56000 |
30000 53000 |
- 50000 |
- 45000 |
- 36000 |
- 30000 |
- - |
