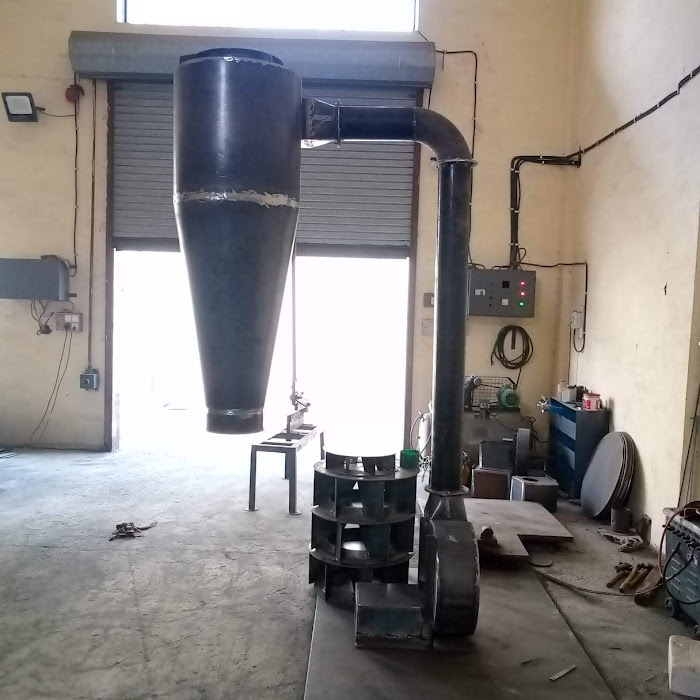

Cyclones Used as Primary Dust Colletors for Dust, Cast Dust, Foundry Dust, Ceramic Dusst, Wood Working Dust, Polyester/Plastic Grinding Dust etc. These Dust Collectors Can be Used for Material Classification or Pollution Control.
For Heavy Duty Dust Removal From Individual Sources like Drying, Grinding Machines and Process Plants Which Otherwise Spreads Around in the Surroundings & Create Unhealthy Working Conditions
The Cyclones Have an Efficiency of 92% for Particle Size of 20 Microns. They are Offered in Mild Steel, Stainless Steel or Mild Steel-Rubber Lined.
Suction dia | Inlet dia | Vol of air m3/hr | D | H | |
---|---|---|---|---|---|
SU-0 | 100 | 100 | 10 | 280 | 840 |
SU-1 | 120 | 120 | 15 | 380 | 1180 |
SU-2 | 150 | 140 | 20 | 470 | 1430 |
SU-3 | 170 | 160 | 30 | 500 | 1600 |
SU-4 | 200 | 200 | 40 | 630 | 1900 |
SU-5 | 250 | 240 | 60 | 790 | 2220 |
SU-6 | 300 | 280 | 90 | 950 | 2840 |
SU-7 | 350 | 320 | 120 | 1000 | 3040 |
SU-8 | 400 | 380 | 160 | 1250 | 3600 |
SU-9 | 450 | 420 | 200 | 1350 | 4000 |
SU-10 | 500 | 480 | 240 | 1500 | 4620 |
SU-11 | 550 | 520 | 300 | 1750 | 4970 |
SU-12 | 600 | 560 | 360 | 1850 | 5280 |
Suction dia | Inlet dia | Vol of air m3/hr | D | H | |
---|---|---|---|---|---|
SU-3 | 170 | 160 | 27 | 640 | 1850 |
SU-4 | 200 | 200 | 38 | 740 | 2140 |
SU-5 | 250 | 240 | 60 | 880 | 2500 |
SU-6 | 300 | 280 | 90 | 1050 | 3100 |
SU-7 | 350 | 320 | 120 | 1160 | 3420 |
SU-8 | 400 | 380 | 160 | 1350 | 3920 |
SU-9 | 450 | 420 | 200 | 1500 | 4370 |
SU-10 | 500 | 480 | 240 | 1650 | 4630 |
SU-11 | 550 | 520 | 300 | 1800 | 5150 |
SU-12 | 600 | 560 | 360 | 2000 | 5630 |
